DESIGNED FOR THE COMMERCIAL VEHICLE SAFETY INSPECTOR

DESIGNED FOR THE COMMERCIAL VEHICLE SAFETY INSPECTOR

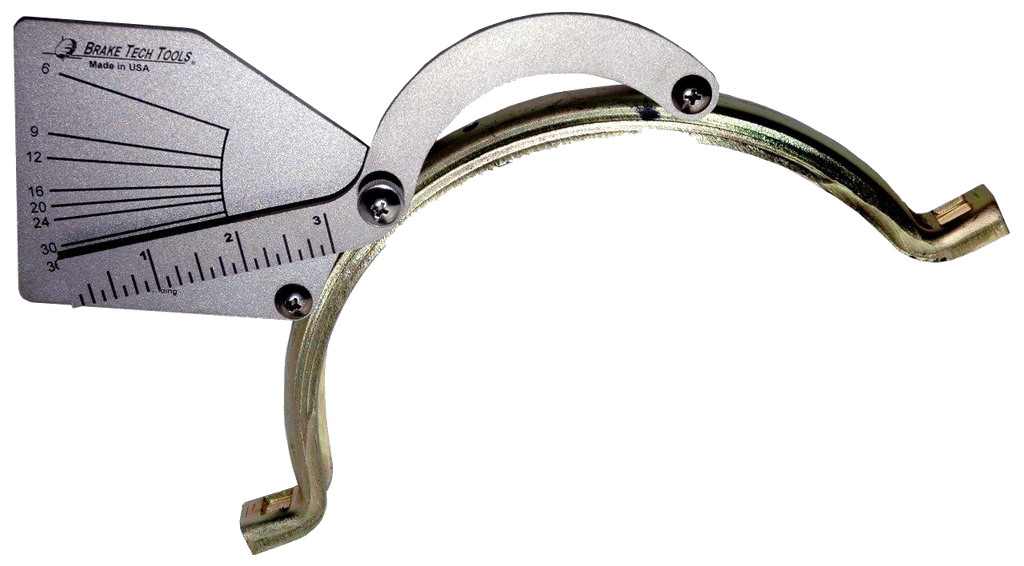

DETERMINES BRAKE CHAMBER SIZE FROM TYPE 6 TO TYPE 36:
ALIGN THE TWO PINS ON THE PLATE WITH THE PERIMETER OF THE CLAMP RING HALF
MOVE THE ARM PIN AGAINST THE CLAMP RING HALF
READ THE SCALE TO IDENTIFY BRAKE CHAMBER SIZE
